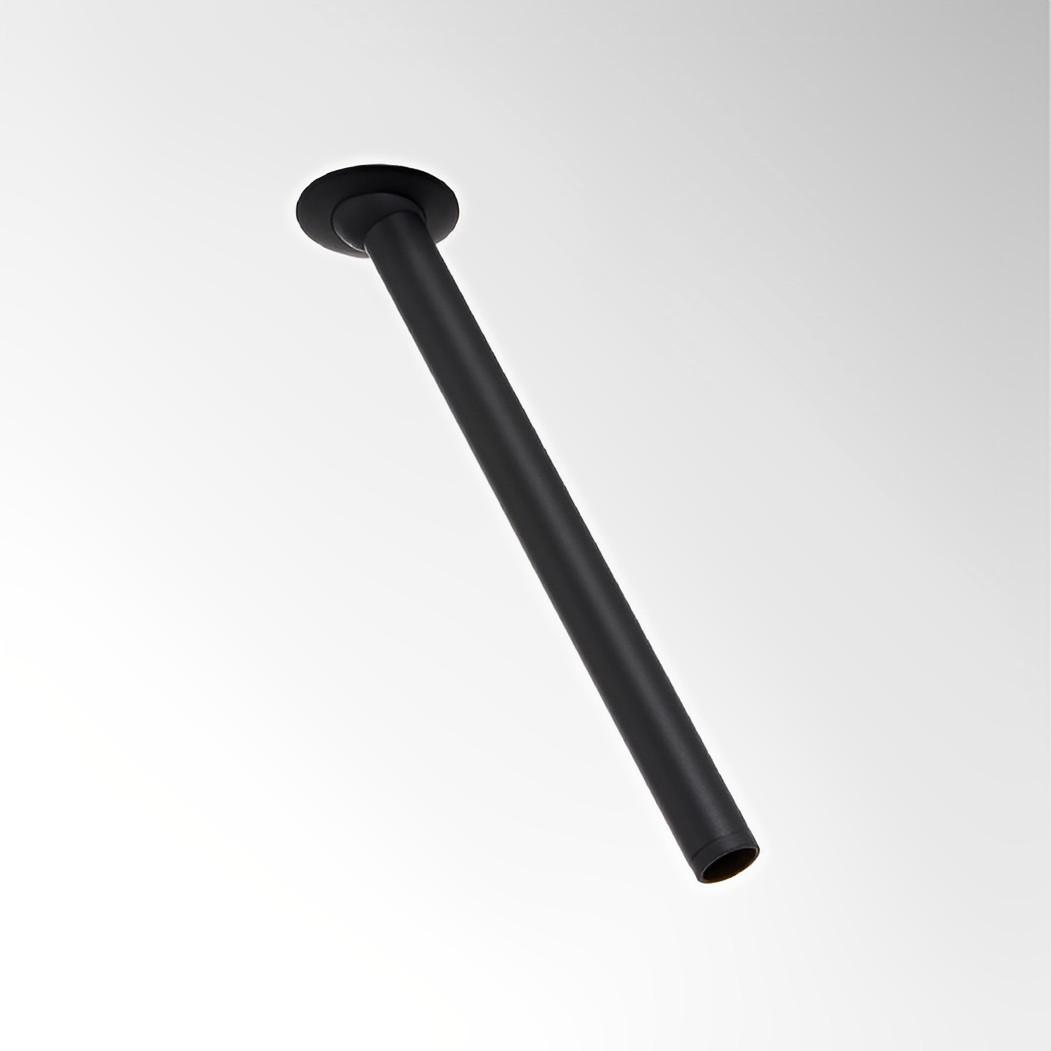

HYTHE LB2953 - SPOT LIGHT
BASE: LB2953HYTHE lighting solution with professional specifications
Specifications at a Glance
5W
Power
80-85LM/W
Lumen Output
2700K3000K4000K5000K6000K
Available Colour Temperatures
CRI 80CRI 90
Colour Rendering Index
IP20
Protection Rating
24°
Beam Angle
UGR<19
UGR / Optics
220-240VAC(With Driver)
Input
Ø60mm
Cutout Size
Ø25mm x 300mm
Body Dimensions
BlackWHITEWhite
Available Finishes
Non-DimmableDALITriac0/1-10V
Dimming Options
Certifications & Compliance
CE
RoHS
IP20
5 Year Warranty
CONFIGURE YOUR PRODUCT
Select your preferred specifications to generate the exact order code.
24°
Generated Order Code
LB2953.W.927.WBK.24.DR
Available
Total Available Configurations: 9
Your Configuration
Color Temperature
2700K
Body Finish
Black
Beam Angle
24°
Dimming
💡
On/OffCri
CRI 80
Need help configuring? Contact our sales team for assistance.
AVAILABLE CONFIGURATIONS
9 standard configurations ready for immediate order
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB2953.W.930.WWH.24.TDR
CCT:
3000K
Power:5W
Lumen:80-85LM/W
Beam:
24°
Finish:
CRI 90IP20White
LB2953.W.927.WBK.24.DR
CCT:
2700K
Power:5W
Lumen:80-85LM/W
Beam:
24°
Finish:
CRI 90IP20Black
LB2953.W.927.WWH.24.DR
CCT:
2700K
Power:5W
Lumen:80-85LM/W
Beam:
24°
Finish:
CRI 90IP20White
LB2953.N.940.WBK.24.DR
CCT:
4000K
Power:5W
Lumen:80-85LM/W
Beam:
24°
Finish:
CRI 90IP20Black
LB2953.N.940.WWH.24.DR
CCT:
4000K
Power:5W
Lumen:80-85LM/W
Beam:
24°
Finish:
CRI 90IP20White
LB2953.C.960.WBK.24.DR
CCT:
6000K
Power:5W
Lumen:80-85LM/W
Beam:
24°
Finish:
CRI 90IP20Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- HYTHE
- Family:
- HYTHE
Applications
Retail
Jewellery Display
