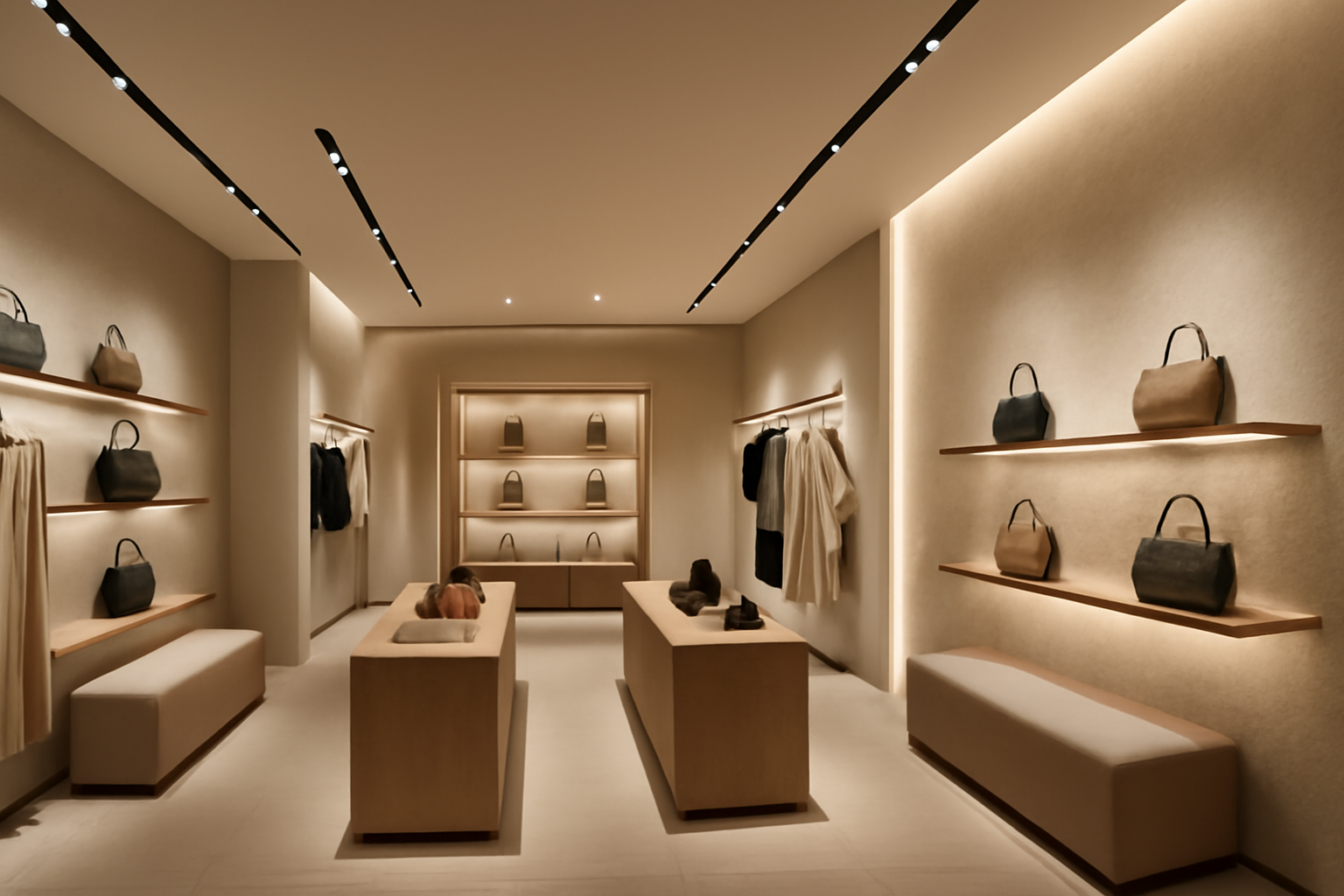

Retail lighting showcase

Application

Retail

Illuminate products and create compelling shopping experiences

CRI 95+ for true colorAdjustable accent spotlightsEnergy-efficient LED track systemsFlexible layout adaptation

ZONE 01 - FEATURE DISPLAY

Feature Display

Draw attention to hero products

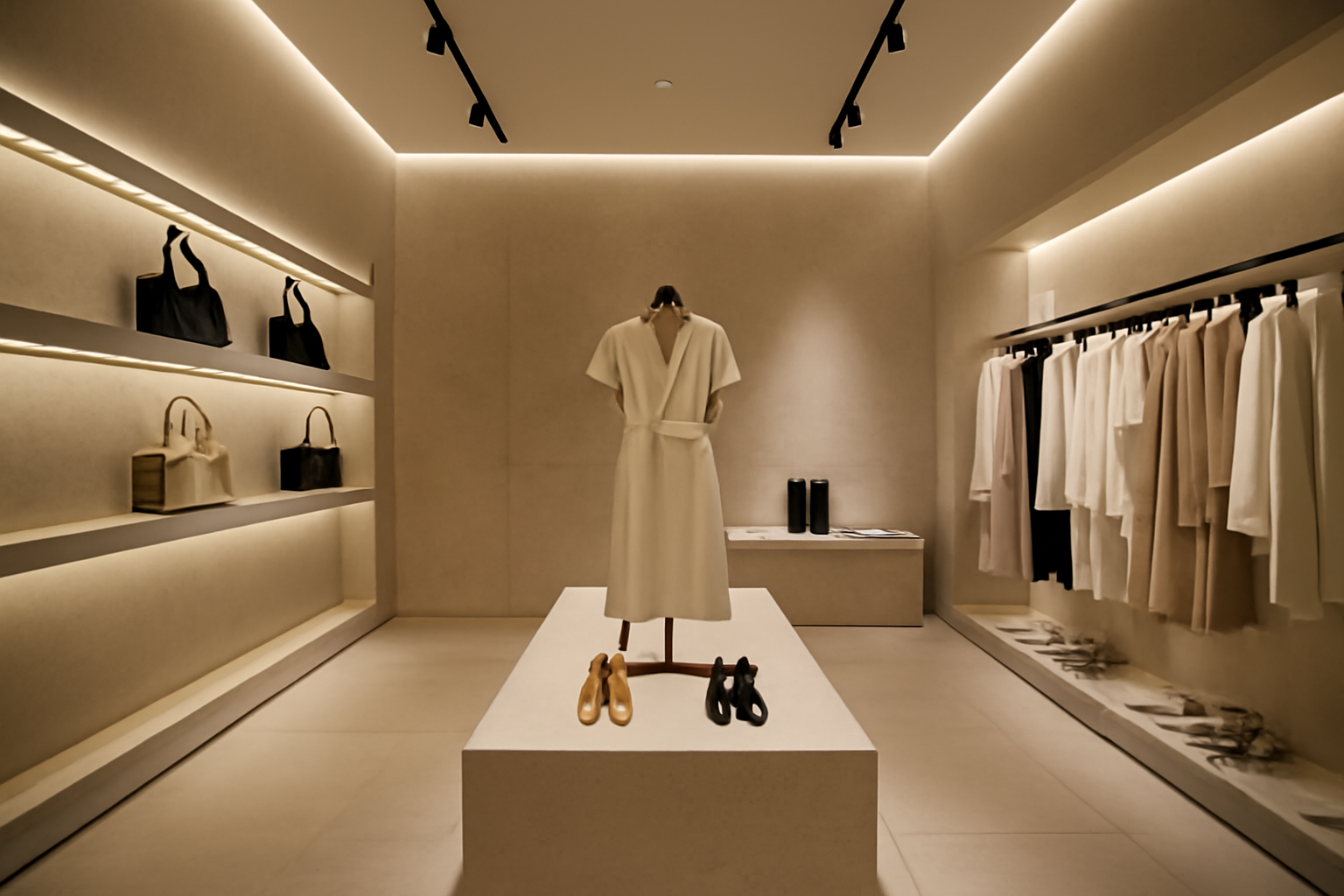

Retail - Feature Display lighting environment

Wall-integrated linear systems combined with adjustable accent spots deliver high contrast and visual drama. Neutral 3500K maintains color accuracy while high CRI (95+) ensures fabrics, cosmetics, and materials appear true to life.

Accent Illuminance: 800-1200 lux on displayCCT: 3500K neutralCRI: R9 >80, CRI 95+

  • Product emphasis
  • True color rendering
  • Flexible aiming

ZONE 02 - AISLES

Aisles

Provide comfortable browsing illumination

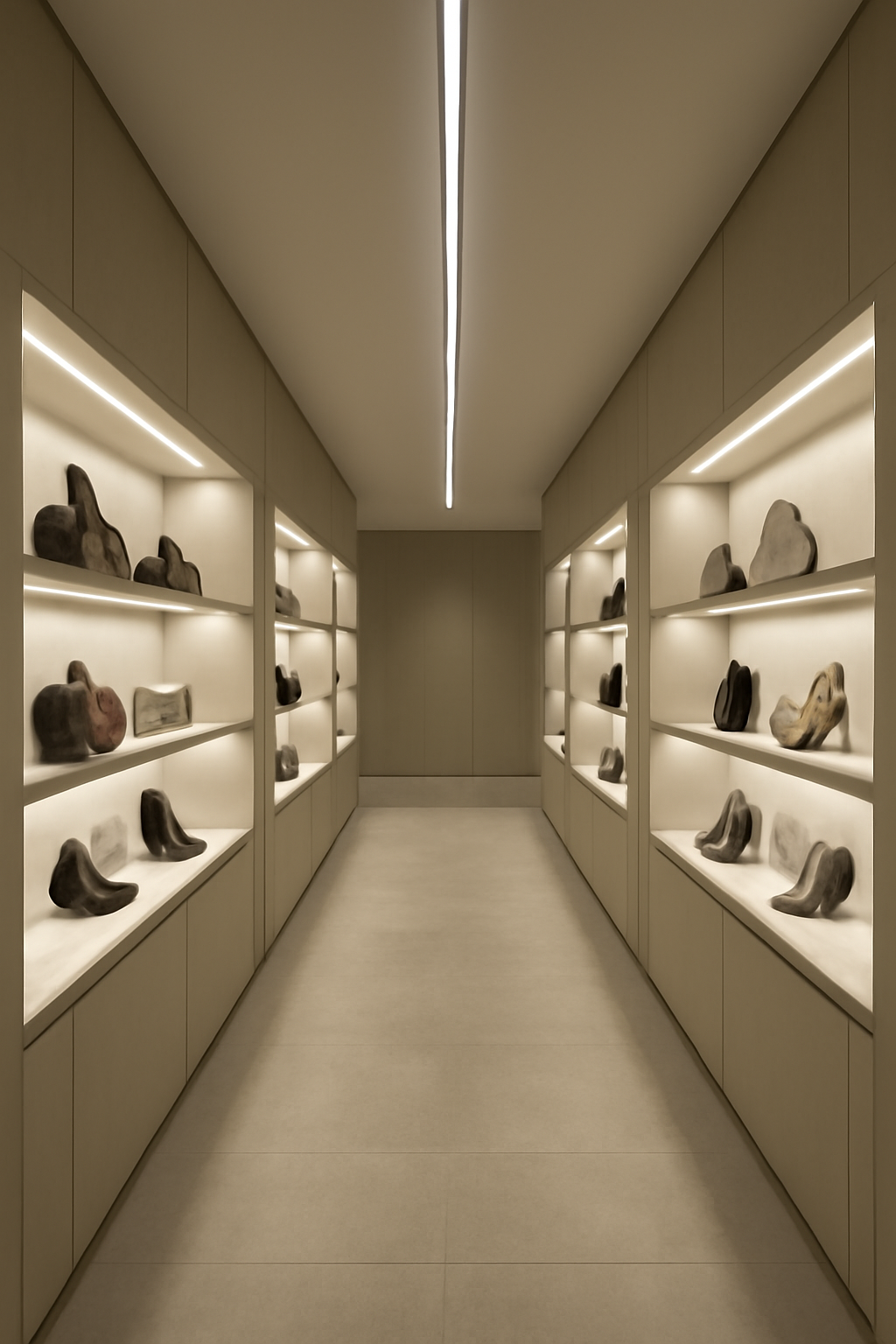

Retail - Aisles lighting environment

Continuous linear ceiling luminaires with UGR-controlled optics ensure uniform vertical illumination on shelving. Customers browse comfortably without glare or harsh shadows. Neutral 4000K balances energy and warmth.

Vertical Illuminance: 300-500 lux on shelvingCCT: 4000K neutralUGR: <22 for comfort

  • Uniform browsing
  • Low glare
  • Shelf visibility

ZONE 03 - CASH WRAP

Cash Wrap

Create a positive checkout experience

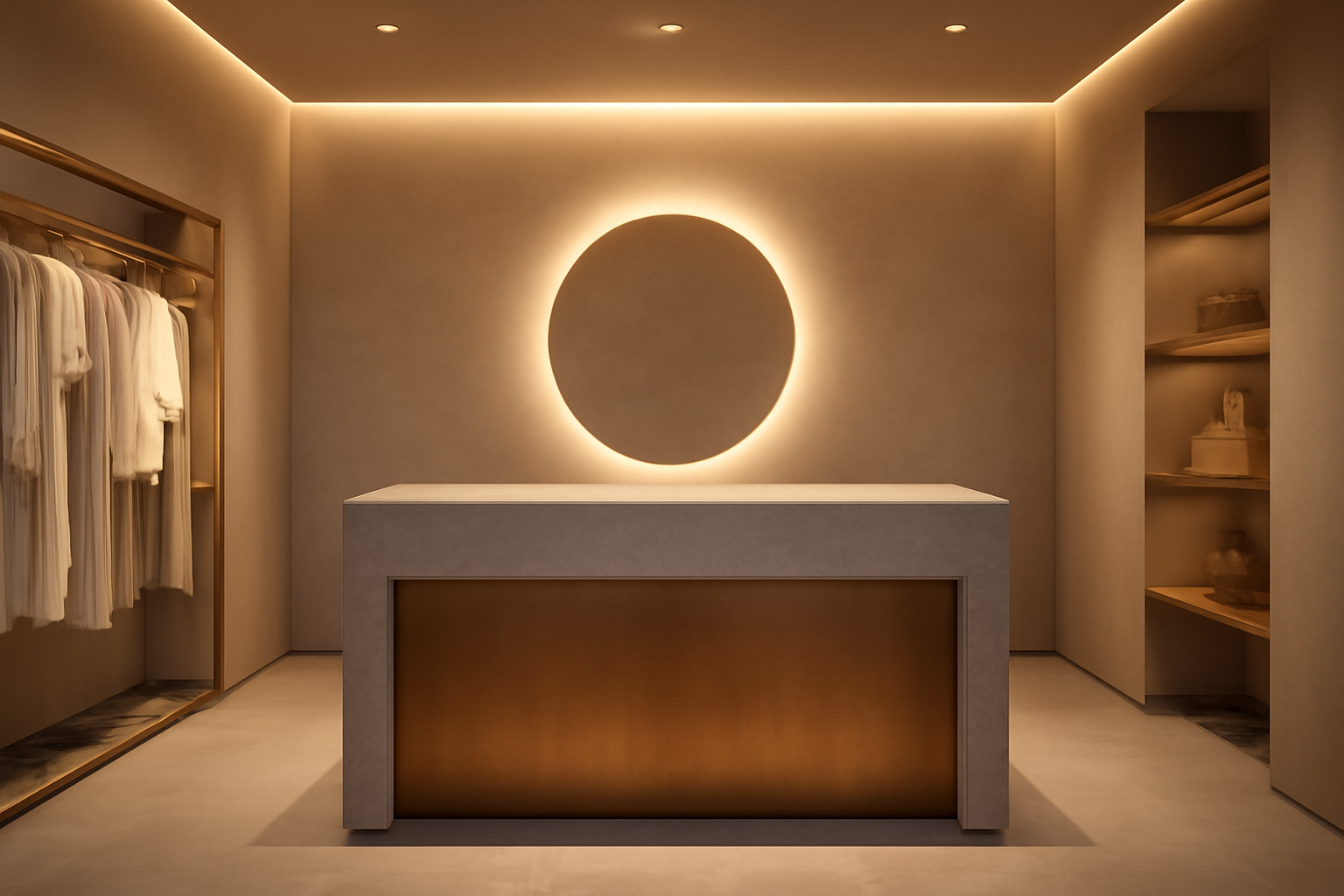

Retail - Cash Wrap lighting environment

Soft indirect ceiling wash provides ambient light while accent halo behind the counter adds architectural interest. Warm 3000K and brushed bronze finishes create a premium, welcoming final touchpoint.

Counter Illuminance: 300-400 luxCCT: 3000K warmAccent Feature: Halo backlight

  • Welcoming atmosphere
  • Brand reinforcement
  • Task support

ZONE 04 - FITTING ROOMS

Fitting Rooms

Support accurate product evaluation

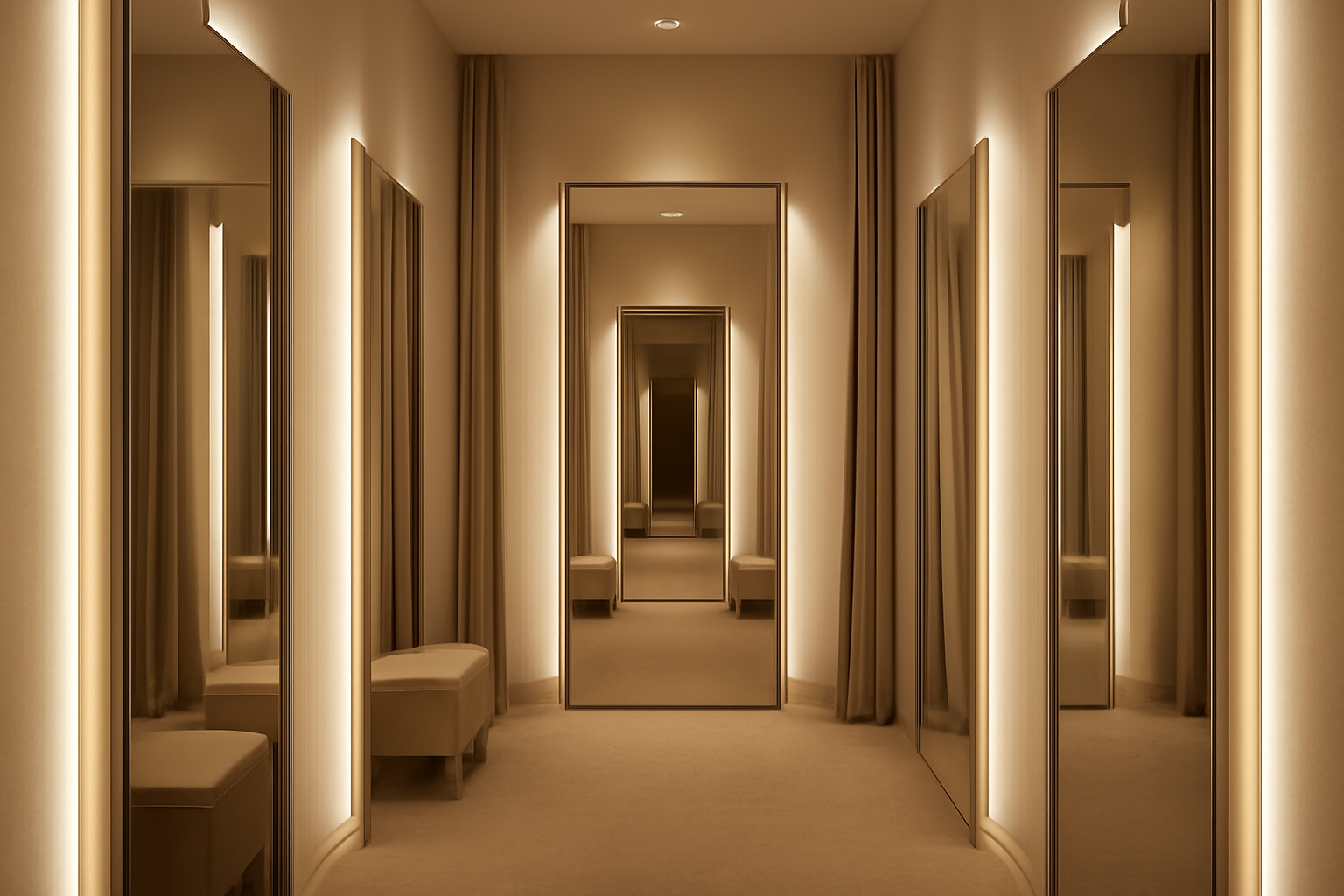

Retail - Fitting Rooms lighting environment

Vertical mirror lighting designed for skin-tone accuracy and flattering illumination. CRI 95 with strong R9 ensures fabrics and cosmetics appear true to life. Neutral 3500K provides balanced assessment without color cast.

Vertical Illuminance: 300-500 lux at mirrorCCT: 3500K neutralCRI: R9 >90, CRI 95+

  • Color accuracy
  • Flattering light
  • Purchase confidence

ZONE 05 - WINDOW DISPLAY

Window Display

Attract foot traffic after dark

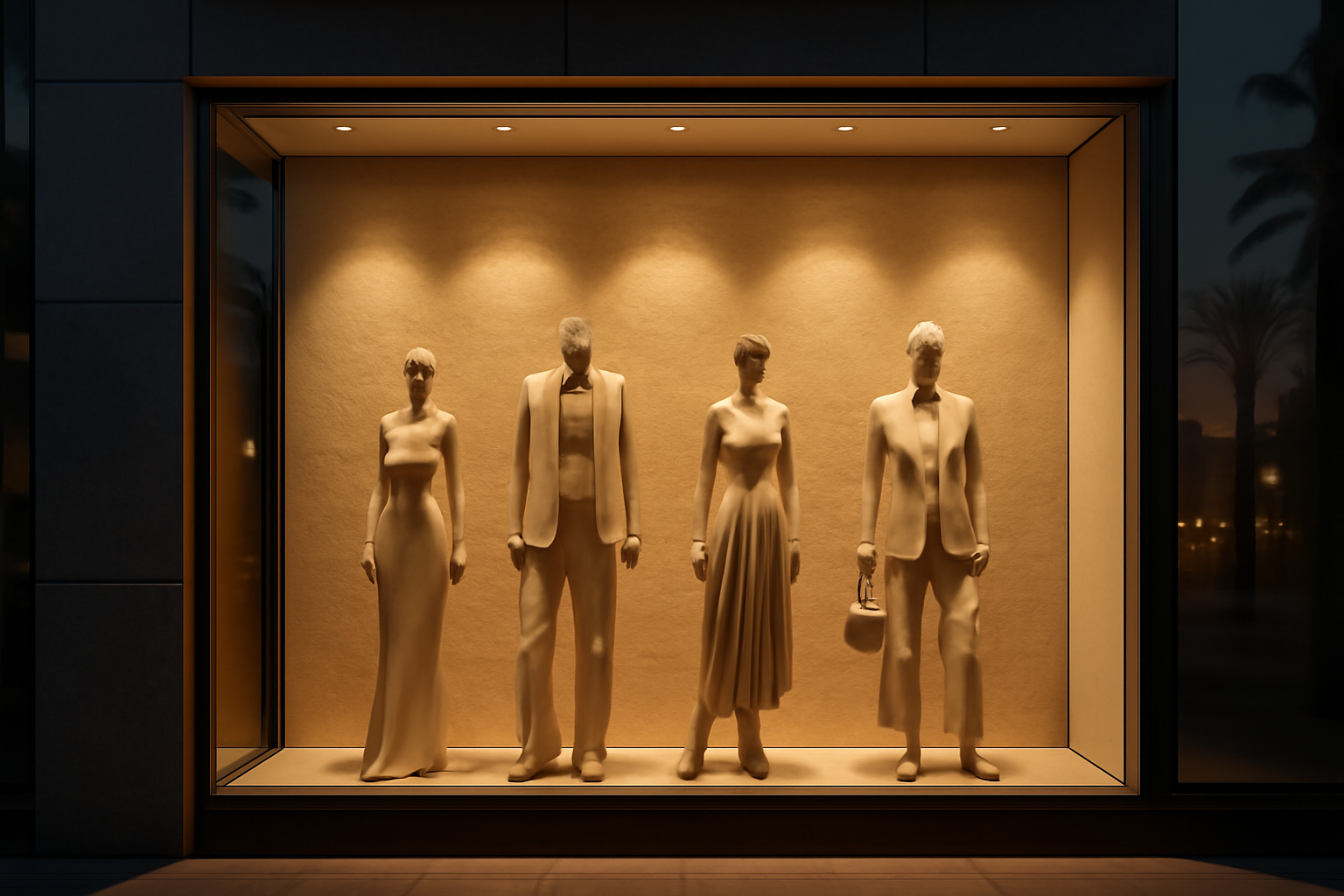

Retail - Window Display lighting environment

Accent lighting with grazing optics on textured backdrops creates visual intrigue from the street. Warm 3000K maintains brand warmth while controlled reflections prevent glare on glass. Dimmable for time-of-day adjustment.

Display Illuminance: 1000+ lux on productCCT: 3000K warmBeam Control: Narrow spot, adjustable aim

  • Foot traffic attraction
  • After-dark presence
  • Product drama

Technical Specifications & Performance

Comprehensive technical data for specification professionals

Photometrics & Performance

Technical lighting performance specifications for specification professionals

CCT Range2700K - 5000K Tunable

Kelvin

Color RenderingCRI 90+, TM-30 Rf ≥85

Index

Glare ControlUGR <19

Unified Glare Rating

Flicker PerformancePstLM <1%, SVM <0.4

IEEE 1789

Lifetime RatingL90 > 50,000 hrs

Hours

Controls & Interoperability

Compatible with industry-standard lighting control protocols for seamless building integration

DALI-2
0-10V Dimming
KNX Integration
Casambi
Bluetooth Mesh

Sustainability & Support

Environmental compliance and comprehensive service for UAE projects

Sustainability & Compliance

Environmental responsibility and regulatory compliance for responsible specification

RoHS/REACH

Compliant with EU chemical safety directives

ISO 9001/14001

Quality and environmental management certified

LEED/WELL Aligned

Contributes to green building certification points

EPD Available

Environmental Product Declaration on request

Warranty & Service

Comprehensive support and local service for UAE projects

5-Year Warranty

Comprehensive coverage on drivers, LEDs, and housing with local support

UAE Local Stock

2-4 week lead time for standard items, Dubai warehouse available

Technical Support

UAE-based lighting consultants available for specification support

24-Hour Response

Priority support for specification inquiries and project RFIs

Industry Standards & Certifications

LumiBright solutions align with international lighting standards and building certification programs

Industry StandardsWELL-alignedLEED-friendlyIES RP-1-21LM-79 tested

Technical Documentation Hub

Download complete technical packages for Retail lighting specification

IES/LDT Files

Photometric data for lighting calculations

IES, LDT

Revit Families

BIM objects for architectural integration

RFA, RVT

Datasheets & Cut Sheets

Complete product specifications and dimensions

PDF

Installation Guides

Technical installation and commissioning instructions

PDF

Ready to Specify?

Our lighting consultants are available to support your retail project with technical guidance, photometric analysis, and specification documents.
